PLC Control High Frequency Induction Crankshaft Heating Treatment Machine
Induction Hardening Machine,Induction Hardening Machine price,Induction Hardening Machine equipment,Induction Hardening Machine manufacture,Induction Hardening Machine companies.Induction Hardening Machine for sale
Machine Configuration
1, Ball screw, CNC cutting machine tools, total customize;
2, Guide selection of linear bearings, high precision, little friction, long life, Hard-chrome-plated anti-ability;
3, Lifting the weight balanced in part through the sprocket chain, Weight for casting scales mound;
4, Sink completely sealed, no infrastructure projects; stainless steel sliding doors, beautiful and generous;
The total power of the quench machine’s motor : 2.0kw
Product weight : on/about 1.5ton
Product size : length1500 x wide1000 x high3000
Quenching mode: continuous scan quenching; regularly quenching; sub-scan quenching;
Quenching speed adjustment: stepless adjustable
Working speed adjustment: stepless adjustable
Cooling method: spray
Quenching application : drive class, gear, shaft
Induction Heating Machine Equipment GY-100AB Parameter
| Model | GY-100AB (Three phase) |
| work power | 340V-430V |
| input current | 150A |
| output power | 100KW |
| fluctuating frequency | 30-80KHZ |
| output current | 400-4000A |
| the flow rate of cooling water | 0.08-0.16Mpa 10L/Min |
| water temperature protection point | 40C |
| product size | main : 820x600x1060 mm |
| transformer : 870x430x750 mm |
| net weight | main : 110 kgs |
| transformer : 79.5 kgs |
Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.
Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
| Induction Heater Power Require depends on following factors : |
| » | Mass of work piece | » | Material properties of work piece |
| » | Temperature increase you require | » | Heating time require |
| » | Effectiveness of coil design | » | Comprehensive full load design |
| » | Any heat loss during heating process |
Induction Heater Application
Induction Heater After service

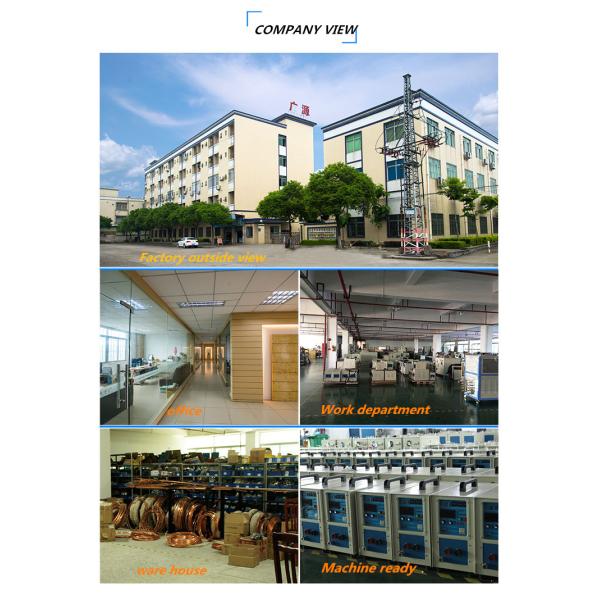

Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,
price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,
pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery
time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,
CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
